How to Bring Your Aluminum Extrusion Idea to Life
Turning an aluminum extrusion idea into a manufacturable component requires more than a rough concept. Engineers and product designers should define the part’s intended use, geometry, dimensions, tolerances, alloy requirements, and expected production volume before approaching an extrusion manufacturer. This preparation helps an experienced partner like Profile Precision Extrusions evaluate feasibility, identify design risks, and recommend the next steps.
What Types of Products Can Be Made With Aluminum Extrusion?
Aluminum extrusion can be used to manufacture a wide range of lightweight, durable, and highly customized components. Depending on the part’s size, geometry, alloy, tolerances, and performance requirements, extruded aluminum may be appropriate for products across the medical, aerospace, electronics, transportation, and industrial sectors. A few examples include:
- LED lighting components
- Stethoscope ear tubes
- Hinges for aircraft galleys and lavatories
- Disposable surgical instruments
- Linear slides
- Bicycle wheel components
- Heat-pipe cooling systems for satellite electronics
Profile Precision Extrusions specializes in small, complex aluminum extrusions, including precision shapes and tubing for applications where dimensional consistency and tight tolerances matter.
How Do You Know Whether an Aluminum Extrusion Design Is Feasible?
The most reliable way to determine whether a design is feasible is to have an experienced aluminum extrusion manufacturer review it. The manufacturer can evaluate the shape, dimensions, wall thicknesses, tolerances, alloy, surface-finish requirements, and anticipated production volume against its equipment and process capabilities.
For a simple shape, such as a round tube or square bar, a written description and basic dimensions may be enough for an initial conversation. More complex profiles should be supported by:
- A dimensioned sketch
- A PDF drawing
- A 2D technical drawing
- A 3D CAD file
- Details about the component’s application
- Expected tolerances and annual volume
Not every extrusion manufacturer is equipped for every profile. Profile Precision Extrusions reviews prospective designs to determine whether they fit the extrusion process and PPE’s specific equipment. When a project is not a fit, the team may recommend another qualified resource rather than pushing a design into the wrong manufacturing environment.
What Design Changes Can Make an Aluminum Extrusion Easier to Manufacture?
Small design changes can significantly improve the manufacturability and consistency of an aluminum extrusion. Depending on the profile, an extrusion specialist may recommend adjusting wall thicknesses, radii, voids, tolerances, symmetry, or other geometric features that affect how aluminum flows through the die.
At Profile Precision Extrusions, the engineering team provides direct feedback when a proposed profile pushes the limits of the extrusion process. The goal is not simply to approve or reject the design. It is to help the customer preserve the component’s intended function while reducing production risk wherever possible.
Common recommendations may include:
- Making wall thicknesses more consistent
- Increasing internal or external radii
- Revising narrow channels or deep cavities
- Relaxing tolerances that are tighter than the application requires
- Modifying enclosed voids or complex internal features
- Breaking one highly complex profile into multiple components
Why Can Some Complex Aluminum Extrusion Designs Still Fail?
Some aluminum extrusion designs remain difficult to produce consistently even after careful evaluation and tooling development. Complex internal voids, uneven metal distribution, and differences in material flow can prevent every feature from holding the same dimensions during extrusion.

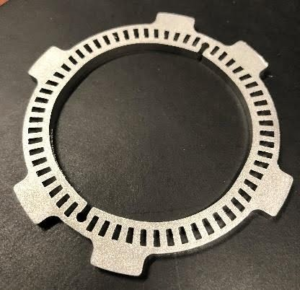

In one particularly challenging project, Profile Precision Extrusions evaluated a profile containing 60 rectangular voids. During extrusion, aluminum flowed at different rates through portions of the profile, which prevented all 60 voids from maintaining identical dimensions. Despite extensive effort, the resulting extrusions could not consistently meet the project’s acceptance requirements.
This example shows why early design review and open communication are critical. A qualified extrusion partner should explain technical risks before full production and help determine whether the design should be revised, tested further, or manufactured through another process.
What Information Should You Prepare Before Contacting an Extrusion Manufacturer?
Before requesting a feasibility review or quote, prepare as much of the following information as possible:
- Part application: Explain what the component does and how it will be used.
- Profile drawing: Provide a dimensioned drawing or CAD file.
- Critical dimensions: Identify which dimensions and tolerances affect performance.
- Material requirements: Note the preferred aluminum alloy and temper, when known.
- Finishing requirements: Include anodizing, painting, machining, or other secondary operations.
- Part length and volume: Share anticipated cut lengths, order quantities, and annual demand.
- Performance requirements: Explain any structural, thermal, electrical, cosmetic, or environmental requirements.
Providing this information helps Profile Precision Extrusions evaluate the design more efficiently and offer more relevant recommendations. To help you get started Pofile Precision Extrusion has prepared an e-book that outlines all the lessons we’ve learned over the past 35+ years to help you bring your aluminum extrusion ideas to life. Download it here.
A successful aluminum extrusion project starts with a clear understanding of the part’s application, geometry, tolerances, material requirements, and production needs. Involving an extrusion specialist early can help uncover design challenges before they become expensive tooling or production problems.
Profile Precision Extrusions helps engineers and product designers evaluate complex, small-profile aluminum extrusion ideas and identify practical paths toward manufacturing. Submit your drawing or contact our team to discuss whether your aluminum extrusion design is a fit for our capabilities.
